| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Número de modelo: | KYT0700-A18 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 2 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 7 ~ 10 días |

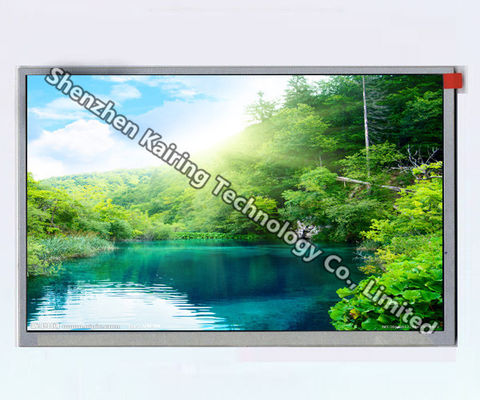

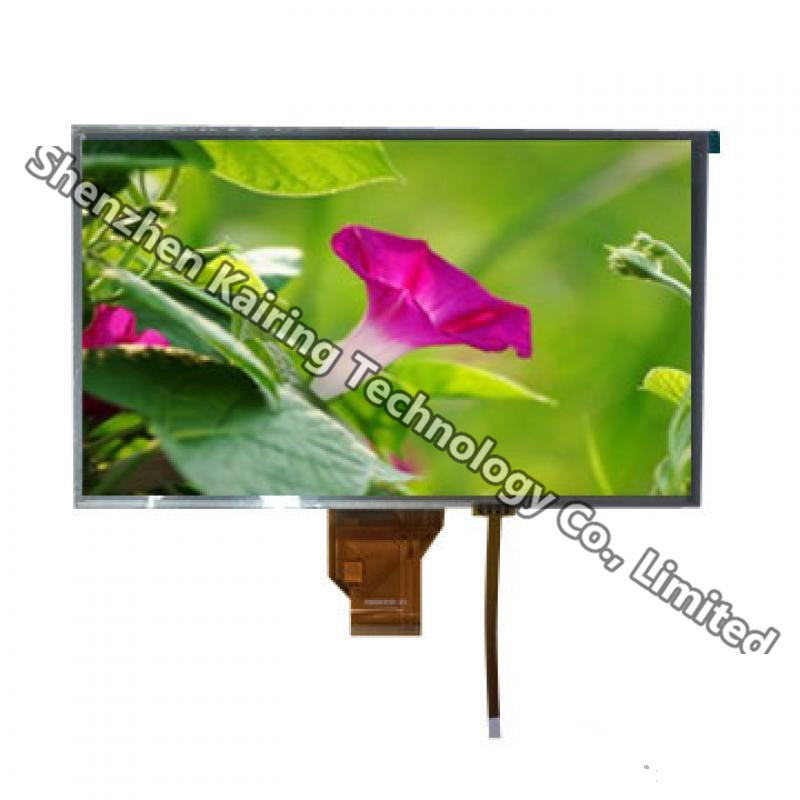

KYT0700-A18 7.0TFT Module Deatailed Specification
| Screen Size | 7.0inch |
| Resolution | 1024*3(RGB) * 600 |
| Module Size | 164.9(W) x 100(H)x 5.7(D) mm |
| Active Area | 154.2144(H)x85.92(V) |
| Interface | 40Pins |
| Brightness | 500cd |
| Pixel Pitch | 0.1506*0.1432 |
| Display Type | Normally White,Transmissive |
| Driver element | a-Si TFT active matrix |
| Surface treatment | Anti-Glare |
| Touch Panel | With |
