| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KDF5100 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 días |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 200 mil por mes |

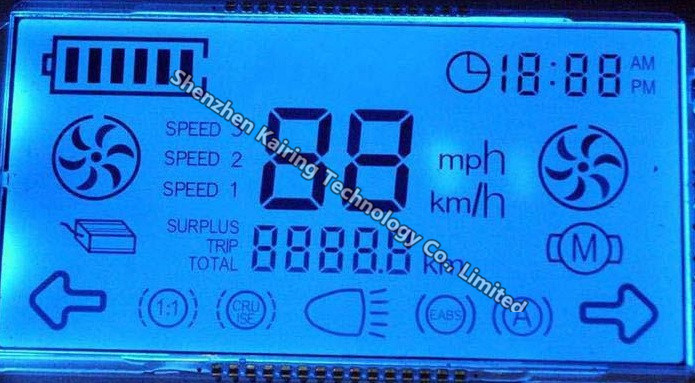

KDF5100 LCD Panel Detail
| LCD Type | FSTN, Negative, Transmissive |
| Dots | Segments |
| Module Size | 72.0*43.0*5.0mm |
| Active Area | 68.52*37*2.8mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD+3.3V, VOP= 9.0V |
| Drive Method | 1/16Duty, 1/5Bias |
| Backlight | White LEDs |
| Interface | PIN |
