| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & Reach |
| Número de modelo: | KMB5336 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 30 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 100K / mes |

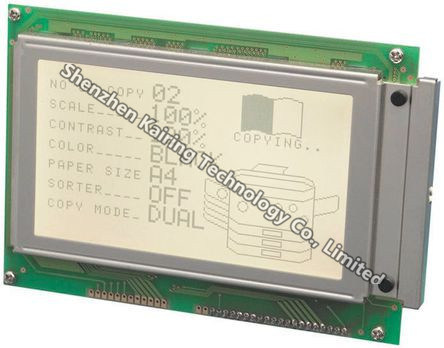

KMB5336
COB 240 *128 Module Detailed Specification
| LCD Type | FSTN, Positive, Transflective |
| Dots | 240 * 128 |
| Module Size | 144.0*104.0*14.0*mm |
| Active Area | 107.95*57.55mm |
| Oper. Temp. | -20 ~ 70C |
| Storage. Temp. | -30 ~ 80C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD=3.3V, VOP= 12.5V |
| Drive Method | 1/128Duty, 1/12Bias |
| Backlight | White LEDs |
| Interface | PIN |
