| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KDF5214 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 30 días |
| Capacidad de la fuente: | 100K / Mes |

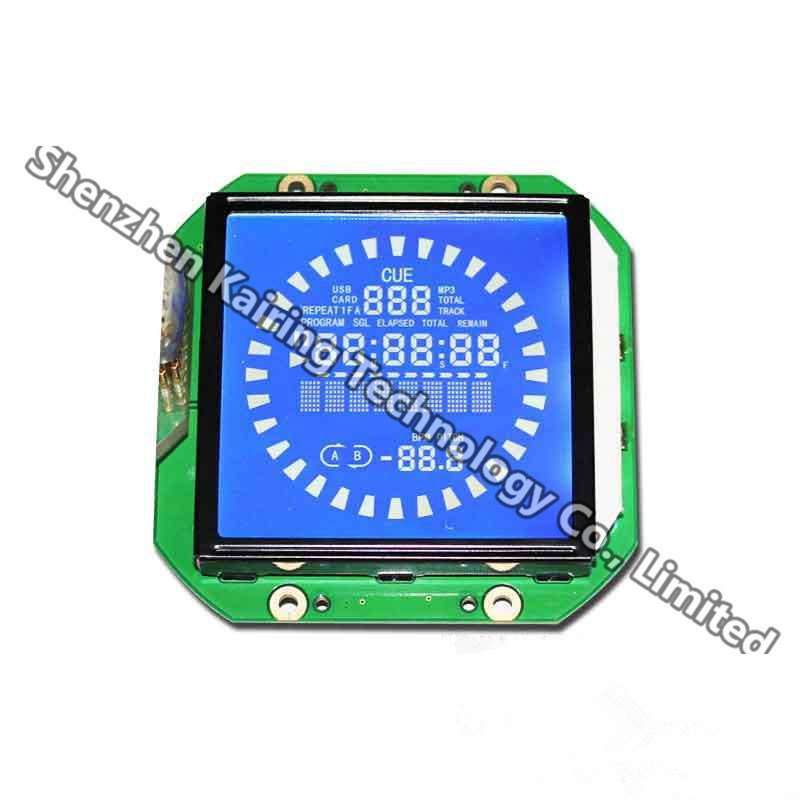

KDF5214 FSTN Module Detail
| LCD Type | FSTN,Blue Mode,Negative, Transmissive |
| Dots | Dots ,Segments |
| Module Size | 66.00*66.00mm |
| Active Area | 48.00*48.00mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD+3.3V, VOP= 9.0V |
| Drive Method | 1/64Duty, 1/9Bias |
| Backlight | White LEDs |
| Interface | PIN |
