| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KMB5344 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 30 días |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 100K/mes |

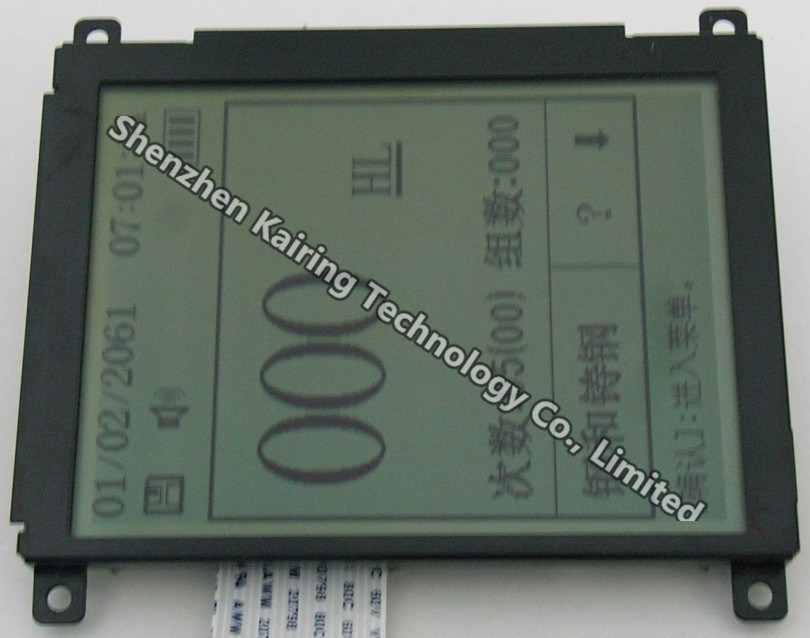

KMB5344 COB Module Detail
| LCD Type | FSTN, Positive, Reflective |
| Dots | 128*160 |
| Module Size | 85.0*68.0*9.8mm |
| Active Area | 66.52*52.0mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD+3.3V, VOP= 9.0V |
| Drive Method | 1/128Duty, 1/9Bias |
| Backlight | Without |
| Interface | FFC |
