Shenzhen Kairing Technology Co.,Ltd
Fábrica Profesional de Módulos LCD
Shenzhen Kairing Technology Co.,Ltd
Fábrica Profesional de Módulos LCD
 |
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KMB5102 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 ~ 30 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 150K / mes |
COB12864 Module Detailed Specification
| LCD Type | FSTN, Negative, Transmissive |
| Dots | 128*64 |
| Module Size | 93.0*70.0*13.5mm |
| Active Area | 66.52*33.24mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD+3.3V, VOP= 9.0V |
| Drive Method | 1/64Duty, 1/9Bias |
| Backlight | White LEDs |
| Interface | PIN |
1.44inch TFT Module 23pins with resolution 128*128
2.8inch TFT Module 36pins RGB interface with resolution 240*320
3.2inch TFT Module RGB interface with resistance touch panel
KMB5104 COB1602 Module Dots 16 Charactors * 2 lines with Red Color
KMB5336 COB LCD Module FSTN Positive Transflective Super-Wide Temperature of 240*128 Dots
KMB5344 COB128160 Module FSTN Positive Reflective Wide Temperature Industrial Equipment

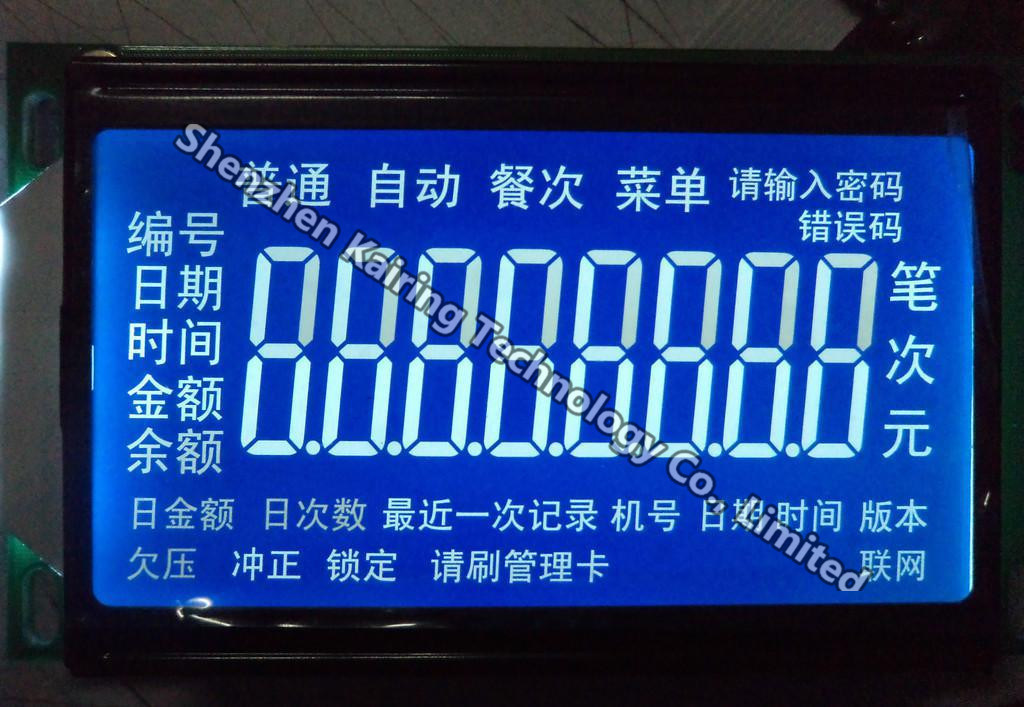

KDF5214 FSTN Glass Panel with White Backlight STN Negative Transmissive Blue Mode Wide Temperature
