Shenzhen Kairing Technology Co.,Ltd
Fábrica Profesional de Módulos LCD
Shenzhen Kairing Technology Co.,Ltd
Fábrica Profesional de Módulos LCD
 |
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoSH & Reach |
| Número de modelo: | KYT0500-A17 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD / HKD or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 10 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 150K / mes |

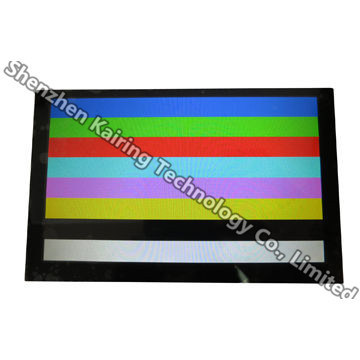

KYT0500-A17,
Deatailed Specification
| Screen Size | 5.0inch |
| Resolution | 800 x3 RGB x480 |
| Module Size | 120.7(W) x 75.8(H)x 3.0(D) mm |
| Active Area | 108.0(H)x64.8(V) |
| Interface | 40Pins |
| Brightness | 300cd |
| Number of Pixels | 0.135(H)*0.135(W)mm |
| Display Type | Normally White,Transmissive |
| Driver element | a-Si TFT active matrix |
| Surface treatment | Anti-Glare |
| Touch Panel | Option |
