| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KDV5122 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 ~ 30 días |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 200 mil por mes |

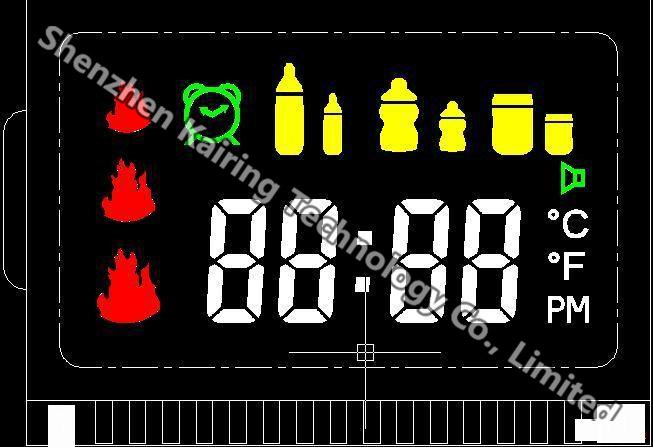

KDV5122,VA LCD Detailed Specification
| LCD Type | VA/NBT, Negative, Transmissive |
| Dots | Segments |
| Module Size5 | 48.0*34.0*2.8mm |
| Active Area | 44.0*28.0mm |
| Oper. Temp. | -20 ~ 70C |
| Storage. Temp. | -30 ~ 80C |
| Viewing Angle | 12:00 |
| Drive Voltage | VOP= 4.5V |
| Drive Method | 1/4Duty, 1/3Bias |
| Backlight | Option |
| Interface | Zebra , or PIN |
