| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KYT0400-A11 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD / HKD or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 10 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 100K / mes |

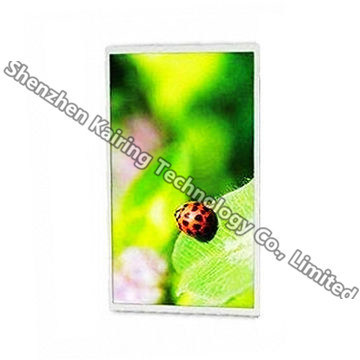

4.0TFT Module All free (IPS) Deatailed Specification
| Screen Size | 4.0inch |
| Resolution | 480 x3 RGB x800 |
| Module Size | 96.85(W) x 57.14(H)x 2.0(D) mm |
| Active Area | 86.40(H)x51.84(V) |
| Interface | 25Pins, MIPI |
| Brightness | 500cd |
| Pixel Pitch | 0.108*0.108mm |
| Display Type | Normally White,Transmissive |
| Driver element | a-Si TFT active matrix |
| Surface treatment | Anti-Glare |
| Touch Panel | Option |
