| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KYT0700-A18 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 10 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 100K / mes |

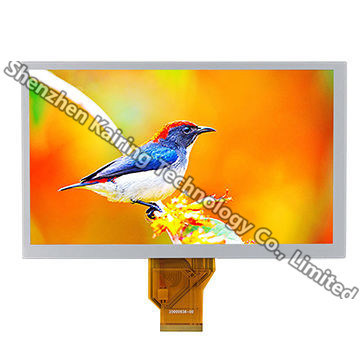

KYT0700-A18
7.0TFT Module Description
| Screen Size | 7.0inch |
| Resolution | 1024 x3 RGB x600 |
| Module Size | 164.9(W) x 100.0(H)x 5.7(D) mm |
| Active Area | 154.2(H)x85.9(V) |
| Interface | 40Pins, LVDS |
| Brightness | 500cd |
| Viewing Angle | 12:00 |
| Display Type | Normally White,Transmissive |
| Color Arrangment | RGB-stripe |
| Surface treatment | Anti-Glare |
| Touch Panel | Option |
