| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KDT5109 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 días |
| Capacidad de la fuente: | 500K /Mes |

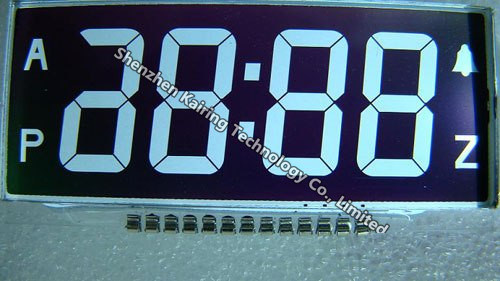

Negative TN LCD Type Detail
| LCD Type | TN, Negative ,Transmissive |
| Dots | Segments |
| Module Size | 57.0*32.0*2.8mm |
| Active Area | 52.0*27.0mm |
| Oper. Temp. | -10 ~ 60C |
| Storage. Temp. | -20 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VOP= 3.3V |
| Drive Method | 1/4Duty, 1/3Bias |
| Backlight | White |
| Interface | PIN |
