| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHs&Reach |
| Número de modelo: | KYT0177-A11 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 10 días |
| Capacidad de la fuente: | 200k/mes |
KYT0177-A11

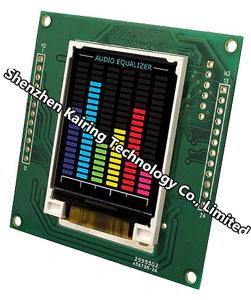

1.77TFT Module Description
| Screen Size | 1.77inch |
| Resolution | 128 x3 RGB x160 |
| Module Size | 34.70(W) x 46.7(H)x 2.6(D) mm |
| Active Area | 28.03(H)x35.04(V) |
| Interface | 20Pins |
| Brightness | 120cd |
| Viewing Angle | 12:00 |
| Display Type | Normally White,Transmissive |
| Color Arrangment | RGB-stripe |
| Surface treatment | Anti-Glare |
| Touch Panel | Option,with driving board |
