| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHs&Reach |
| Número de modelo: | KYT0320-A25 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 10 días |
| Capacidad de la fuente: | 200k/mes |

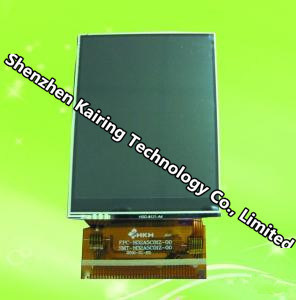

KYT0320-A25 3.2TFT Description
| Screen Size | 3.2inch |
| Resolution | 240 x3 RGB x320 |
| Module Size | 57.04(W) x 78.70(H)x 3.20(D) mm |
| Active Area | 48.60(W)*61.80(H) |
| Interface | RGB/MCU, 40PINs |
| Brightness | 100cd |
| Viewing Angle | 12:00 |
| Display Type | Normally White,Transmissive |
| Color Arrangment | RGB-stripe |
| Surface treatment | Anti-Glare |
| Touch Panel | RTP |
