| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KMG5011 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 30 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 200k / mes |

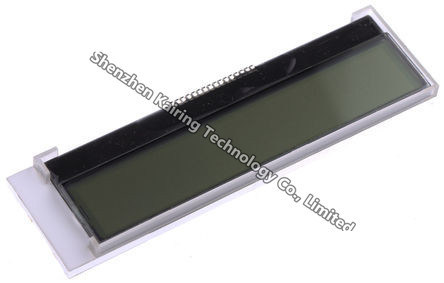

KMG5011 COG12832 Module Detailed Specification
| LCD Type | FSTN, Positive, Transflective |
| Dots | 128*32 |
| Module Size | 68.0*32.0*3.5mm |
| Active Area | 56.0*17.5mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD+3.3V, VOP= 7.5V |
| Drive Method | 1/32Duty, 1/7Bias |
| Backlight | Blue LEDs |
| Interface | PIN |
