| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoSH & REACH |
| Número de modelo: | KMG5222 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 ~ 30 días |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 200k / mes |

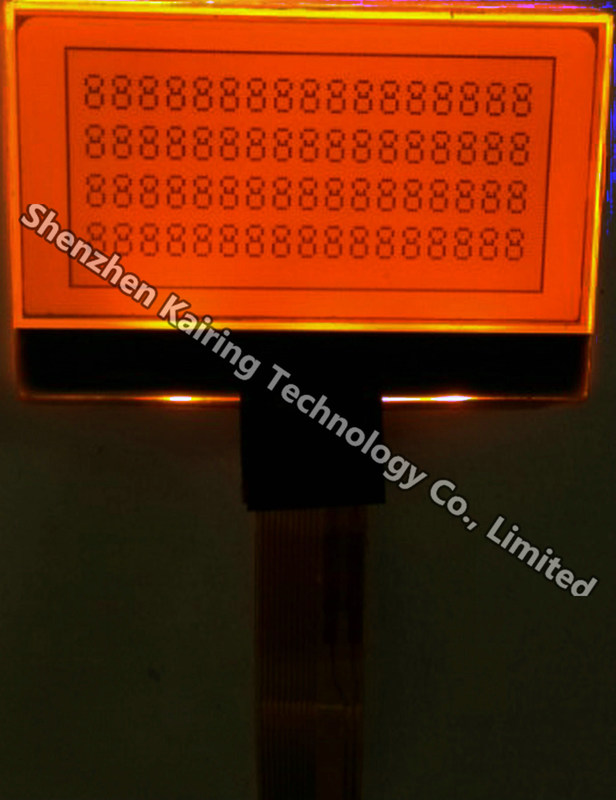

| LCD Type | FSTN, Positive, Transflective |
| Dots | 128*64 |
| Module Size5 | 58.0*46.0*3.5mm |
| Active Area | 46.0*34.5mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 80C |
| Viewing Angle | 12:00 |
| Drive Voltage | VDD+3.3V, VOP= 6.5V |
| Drive Method | 1/64Duty, 1/9Bias |
| Backlight | Orange LEDs |
| Interface | FPC |
