| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KDS5104 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 ~ 30 días |
| Condiciones de pago: | T/T, L/C |
| Capacidad de la fuente: | 200 mil por mes |

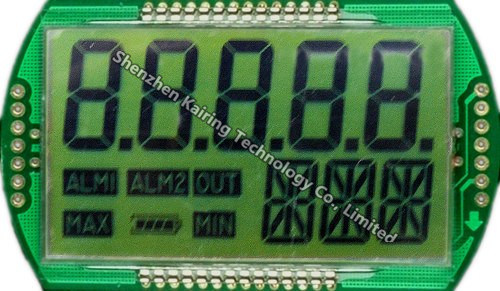

KDS5104 STN Liquid Crystal Display Detail
| LCD Type | STN, Positive , Reflective |
| Dots | Segments |
| Module Size | 58.0*31.0*7.5mm |
| Active Area | 46.52*24.0mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD+3.3V, VOP= 7.5V |
| Drive Method | 1/16Duty, 1/5Bias |
| Backlight | Without |
| Interface | PIN |
