| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KDS5201 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 ~ 30 días |
| Condiciones de pago: | LC, T/T |
| Capacidad de la fuente: | 500K / mes |

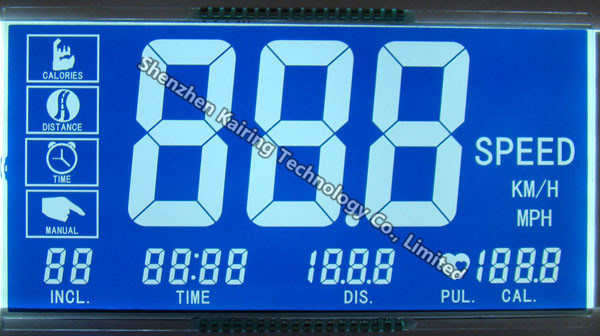

KDS5201 STN LCD Detailed Specification
| LCD Type | STN,Positive, Transmissive |
| Dots | Segments |
| Module Size5 | 73.0*43.0.0*2.8mm |
| Active Area | 68.0*38.0mm |
| Oper. Temp. | -10 ~ 60C |
| Storage. Temp. | -20 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VOP= 3.3V |
| Drive Method | 1/4Duty, 1/3Bias |
| Backlight | White |
| Interface | PIN |
