| Lugar de origen: | Porcelana |
| Nombre de la marca: | Kairing |
| Certificación: | RoHS & REACH |
| Número de modelo: | KDS5204 |
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD, HKD, or others |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25 ~ 30 días |
| Capacidad de la fuente: | 500K / mes |

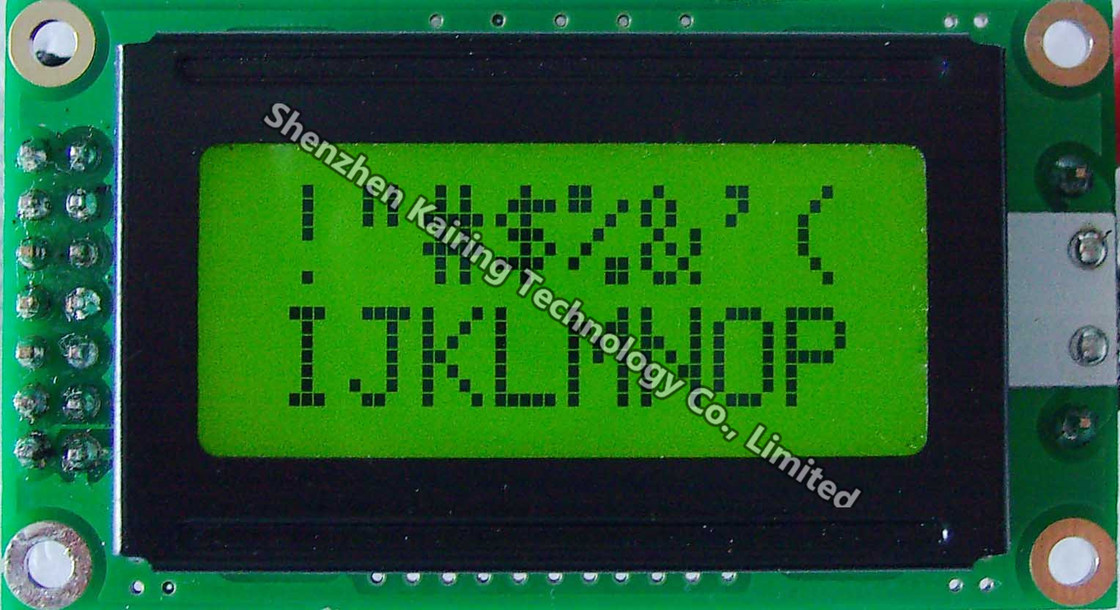

STN LCD Detailed Specification
| LCD Type | STN, Positive, Transmissive,Yellow-green |
| Dots | Dots |
| Module Size5 | 48.0*32.0*2.8mm |
| Active Area | 43.0*27.0mm |
| Oper. Temp. | -10 ~ 60C |
| Storage. Temp. | -20 ~ 70C |
| Viewing Angle | 12:00 |
| Drive Voltage | VOP= 3.3V |
| Drive Method | 1/16Duty, 1/5Bias |
| Backlight | Yellow-green |
| Interface | Zebra |
