| Lugar de origen: | Porcelana |
| Nombre de la marca: | kairing |
| Certificación: | RoHs & Reach |
| Número de modelo: | KDF0511 |
| Cantidad de orden mínima: | 10 |
|---|---|
| Precio: | USD.HKD or other |
| Detalles de empaquetado: | Paquete estándar |
| Tiempo de entrega: | 25-30 días |
| Capacidad de la fuente: | 50k/mes |

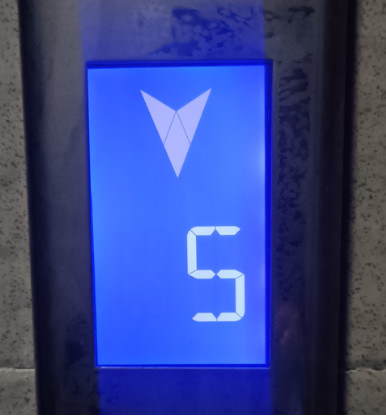

Elevator STN LCD Type Detail
| LCD Type | STN, Negative, Transmissive,Blue |
| Dots | Segments |
| Module Size | 132.0*55.0*9.5mm |
| Active Area | 129*53.00mm |
| Oper. Temp. | -20 ~ 60C |
| Storage. Temp. | -30 ~ 70C |
| Viewing Angle | 6:00 |
| Drive Voltage | VDD+3.3V, VOP= 4.5V |
| Drive Method | 1/4Duty, 1/3Bias |
| Backlight | White LEDs |
| Interface | PIN |
